PSD-2002
(Input 5% THD, crossover frequency > 1.5kHz)
3 x M6 on 2.25" BHC
| Developed for totally 'Eminence-loaded' cabinets, these HF products achieve extraordinary levels of audio performance with the same unrivaled reliability that you demand of Eminence bass and midrange products. |
|
PSD-2002 |
|
| Throat Size: | 1", 25.4mm |
| Impedance: | 8 or 16 ohms |
| Power Rating: (Input 5% THD, crossover frequency > 1.5kHz) |
80W rms |
| Resonance: | 550Hz |
| Usable Frequency Range: | 1.5kHz to 20kHz |
| Sensitivity (1mW in plane wave tube):: | 105dB |
| Magnet Weight: | 34oz. |
| Voice Coil Diameter: | 2", 51mm |
| Voice Coil Former: | Kapton |
| Diaphragm Material: | Titanium |
| Mounting Information | |
| Overall Diameter: | 5.25", 133mm |
| Mounting Holes Diameter: | 2 x 1/4-20 on 3" BHC 3 x M6 on 2.25" BHC |
| Depth: | 2.2", 54mm |
|
PSD-3006  |
|
| Throat Size: | 2", 50.8mm |
| Impedance: | 8 or 16 ohms (Minimum) |
| Power Rating: (Input 5% THD, crossover frequency > 1.5kHz) |
80W rms |
| Resonance: | 511Hz |
| Usable Frequency Range: | 500Hz to 18kHz |
| Sensitivity (1mW in plane wave tube):: | 111.4dB |
| Magnet Weight: | 80oz. |
| Voice Coil Diameter: | 3", 76.2mm |
| Voice Coil Former: | Polyimide |
| Diaphragm Material: | Titanium w/ geodesic design for unparalleled strength. |
| Mounting Information | |
| Overall Diameter: | 5.25", 133mm |
| Mounting Holes Diameter: | 2 x 1/4-20 on 3" BHC 3 x M6 on 2.25" BHC |
| Depth: | 2.2", 54mm |
|

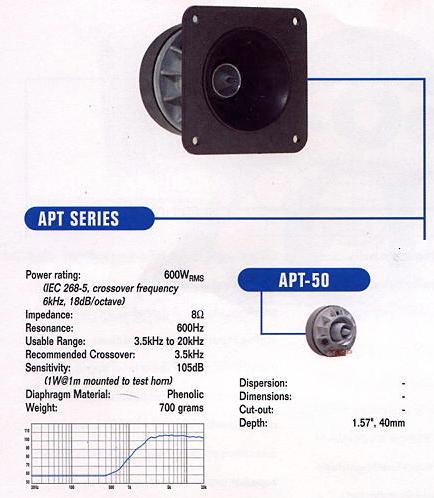

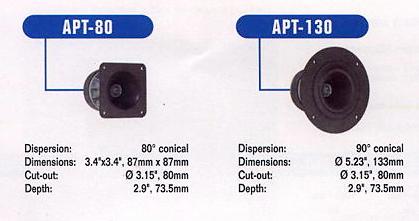

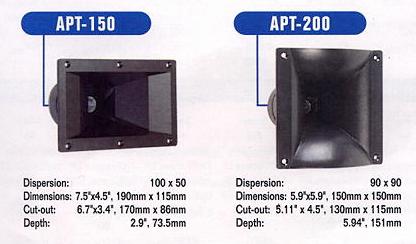

APT Series APT high-power super-tweeters possess extraordinary sensitivity thanks to phenolic diaphragm which has the unique properties of stiffness and damping. By fluid-cooling the voice coil, increasing power handling, controlled low frequency behavior and long term reliability are assured. |

|
